Microsoft Surface Pro 7, Motherboard BoardView file and Schematic diagram

Click on picture to enlarge	Price: US $30.00 Motherboard p/n : JALAMA_ICL_MB What's included : 1) Schematic Diagram 2) BoardView file* (Component Placement Diagram (Silkscreen) / PDF file / Searchable)) 3) Clock Block Diagram 4) Power Sequence and Reset Step-by-Step Block Diagram 4) Power Distribution diagram (Power Flow) 5) CPU Power Delivery Diagram 6) List of Test Points 7) I2C & SMBus Map 8) List of Test Points 9) BIOS (.BIN file) Main components: - CPU/HUB/RAM: Intel IceLake-U Core i3-1005G1 or i5-1035G4 or i7-1065G7 / LPDDR4X - GPU: UMA (Intel UHD Graphics / Iris Plus Graphics / - SAM (Sensor Aggregator Microcontroller): LPC54S001JEV180 File types : PDF (Searchable) Please note! The Component Placement Diagram (Silkscreens) is a PDF file. It's not a .BRD file. The file shows components and test points, its RefDes numbers and location on the board only. ** The BIOS file is untested and offered AS-IS.

Click on picture to enlarge

Price: US $30.00

Motherboard p/n : JALAMA_ICL_MB

What's included :

1) Schematic Diagram

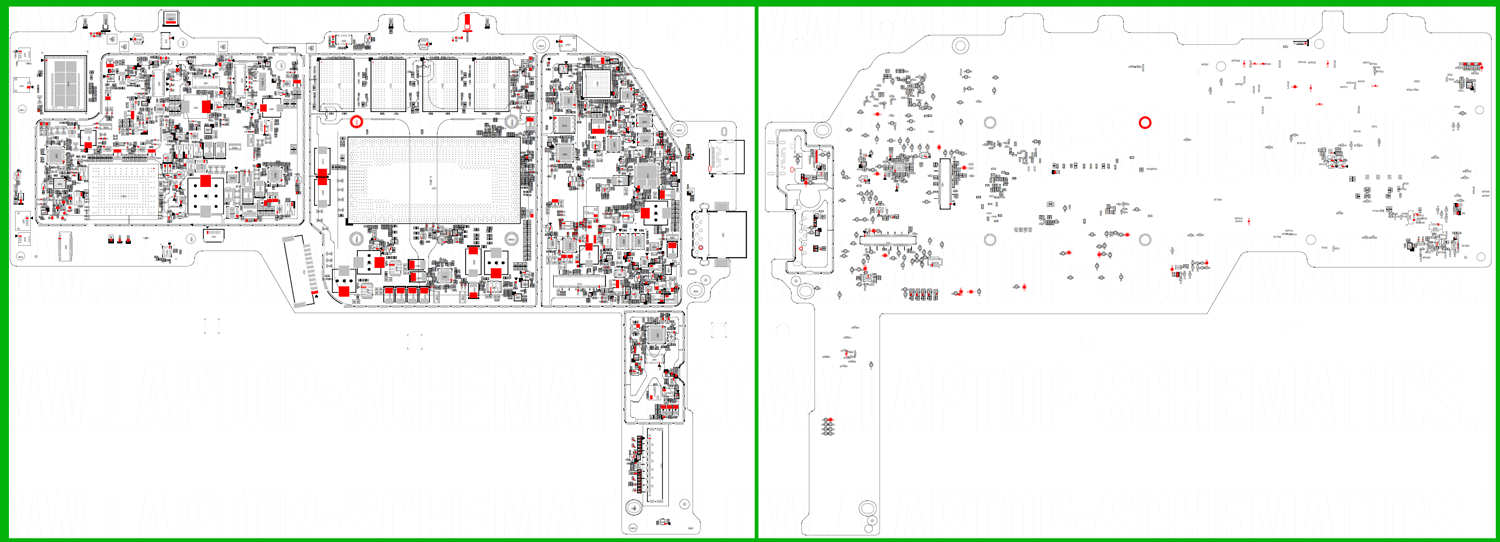

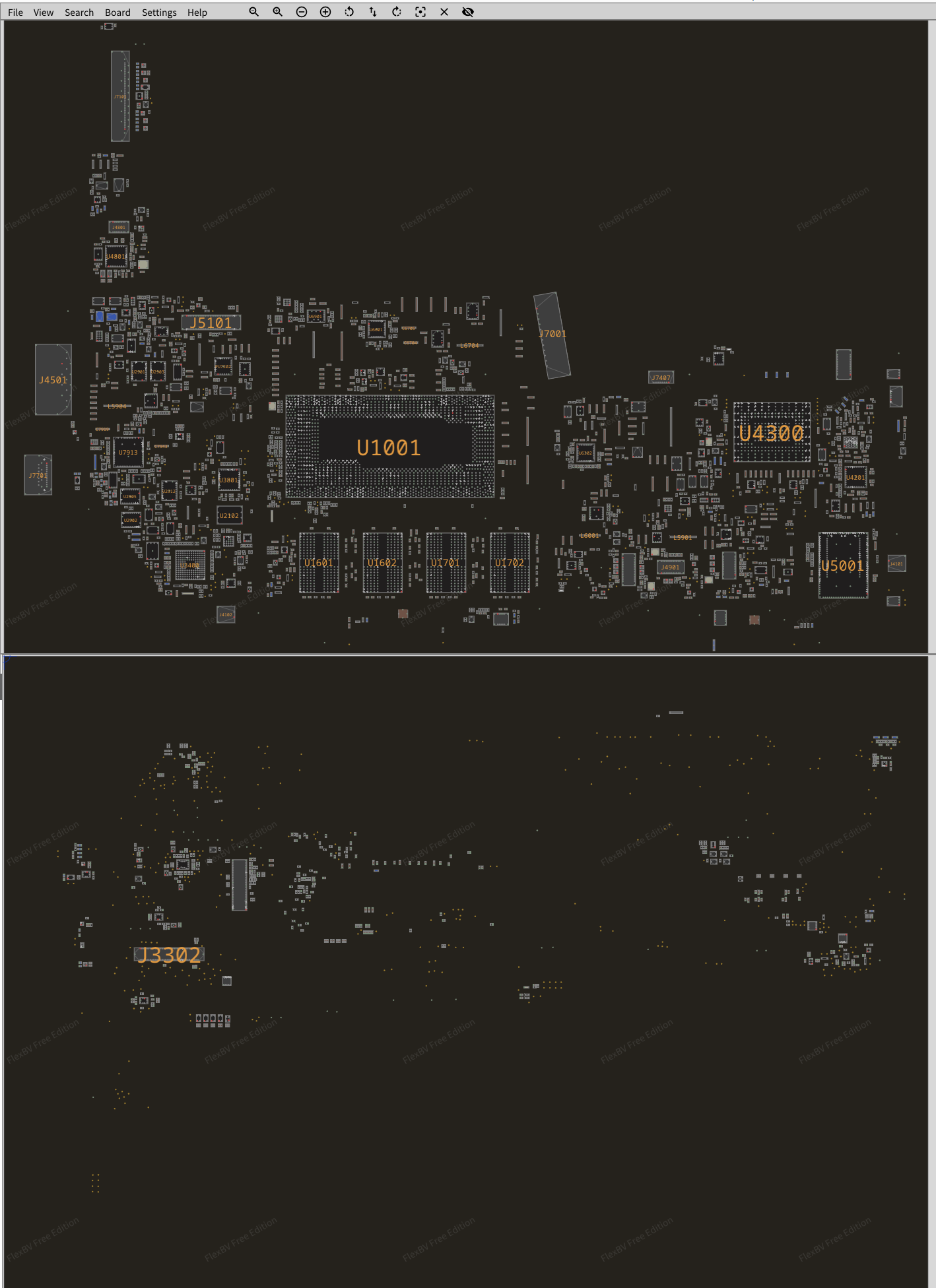

2) BoardView file* (*Component Placement Diagram (Silkscreen) / PDF file / Searchable))
3) Clock Block Diagram
4) Power Sequence and Reset Step-by-Step Block Diagram
4) Power Distribution diagram (Power Flow)
5) CPU Power Delivery Diagram
6) List of Test Points
7) I2C & SMBus Map
8) List of Test Points
9) BIOS (.BIN file**)

Main components:

- CPU/HUB/RAM: Intel IceLake-U Core i3-1005G1 or i5-1035G4 or i7-1065G7 / LPDDR4X
- GPU: UMA (Intel UHD Graphics / Iris Plus Graphics /
- SAM (Sensor Aggregator Microcontroller): LPC54S001JEV180

File types : PDF (Searchable)

*Please note!
The Component Placement Diagram (Silkscreens) is a PDF file. It's not a .BRD file.
The file shows components and test points, its RefDes numbers and location on the board only.

** The BIOS file is untested and offered AS-IS.
