Acer Extensa 215-51K, Motherboard Schematic diagram

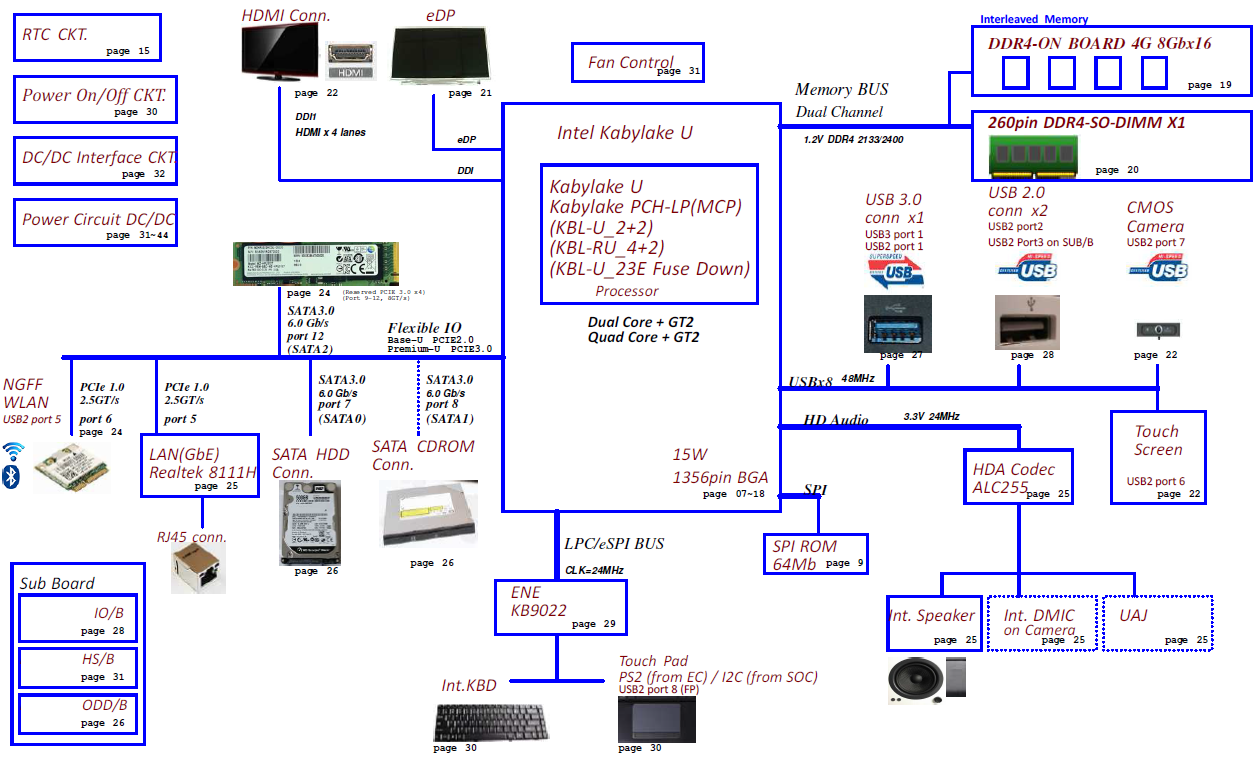

Click on picture to enlarge	Price: US $17.50 Also included: — BoardView file and BoardView software — Power Sequence Timing Diagram — Power Rail (Power Distribution Diagram) — SMBus Block Diagram — 3 additional Schematic Diagrams for: I/O Cardreader, LID and HDD Boards. Major components: CPU/HUB/RAM: Intel Kabylake-U/R / DDR4 GPU/VRAM : UMA EC/KBC/SIO : KB9022 File type : PDF Language : English

Click on picture to enlarge

Price: US $17.50

Also included:

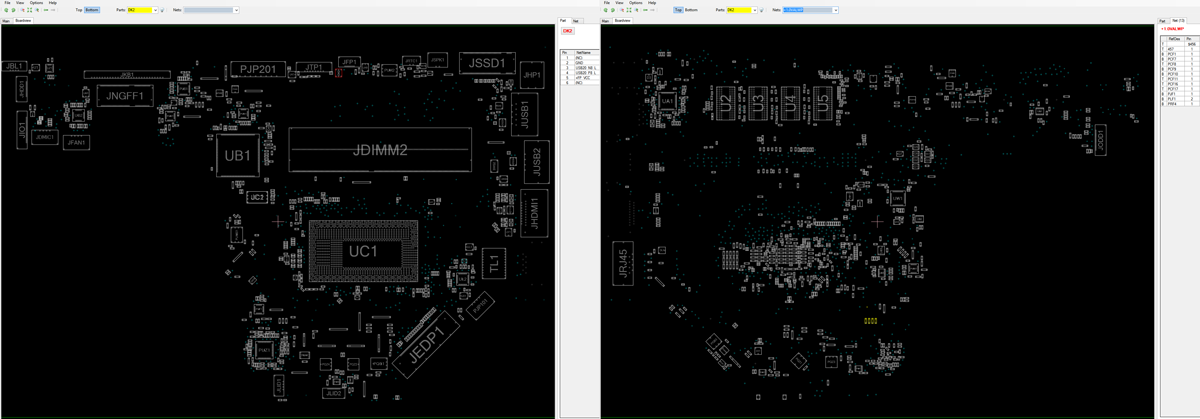

— BoardView file and BoardView software
— Power Sequence Timing Diagram
— Power Rail (Power Distribution Diagram)
— SMBus Block Diagram
— 3 additional Schematic Diagrams for: I/O Cardreader, LID and HDD Boards.

Major components:

CPU/HUB/RAM: Intel Kabylake-U/R / DDR4
GPU/VRAM : UMA
EC/KBC/SIO : KB9022

File type : PDF
Language : English

Updated: 08-05-2021
