Lenovo Lenovo FLEX series laptops Flex Pro-13IKB Laptop (ideapad), motherboard Schematic diagram

Click on picture to enlarge

Price: US $25.00


Also included:

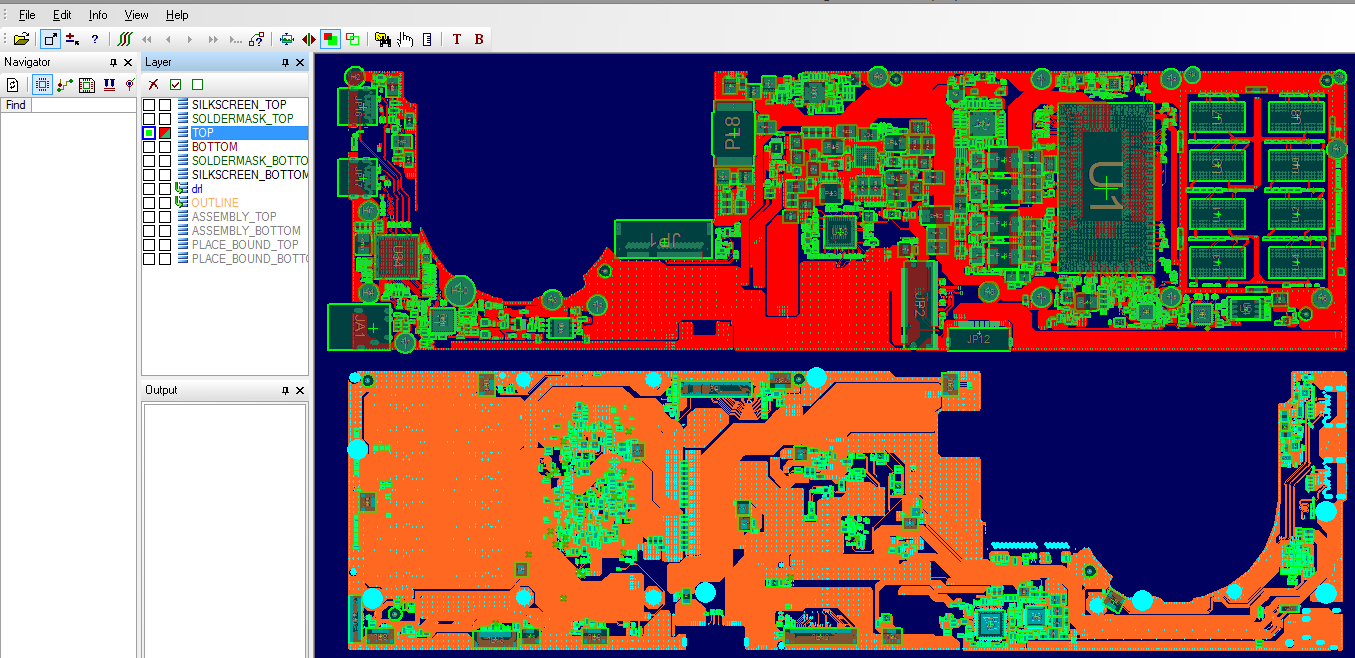

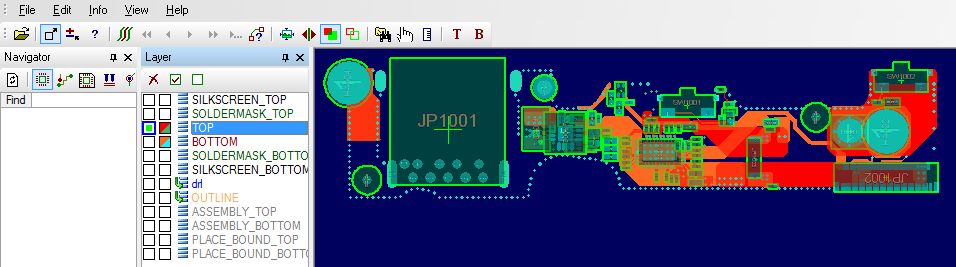

— 2 BoardView files and BoardView software for motherboard and I/O Board
— Additional schematic diagram for Right IO Board

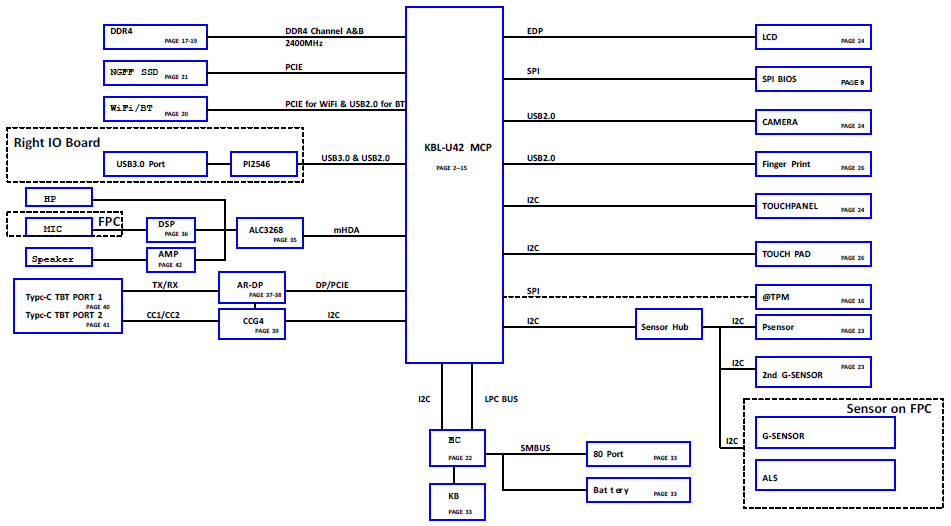

— Power Block diagram


Major components:

Intel Kabylake-U42 MCP
GPU (UMA)
EC IT8186VG

File type : PDF (Searchable)
Language : English

Updated: 12-12-2019
Copyright © 2008-2020 www.laptop-schematics.com
