Acer Aspire ES1-523, Motherboard BoardView file and Schematic diagram
|
|
Price: US $15.00 — 2 Schematic Diagrams for MB and USB Board — 2 BoardView Files for MB and USB Board + BoardView Software — Power Sequence timing diagram — Power Map Major components: CPU: AMD BRISTOL RIDGE/STONEY RIDGE GPU: UMA EC: KBC9022 File types: Schematic Diagram(s): PDF / Searchable BoardView file(s) : .BDV (Honhan) BIOS file : N/A Language : English |
|---|

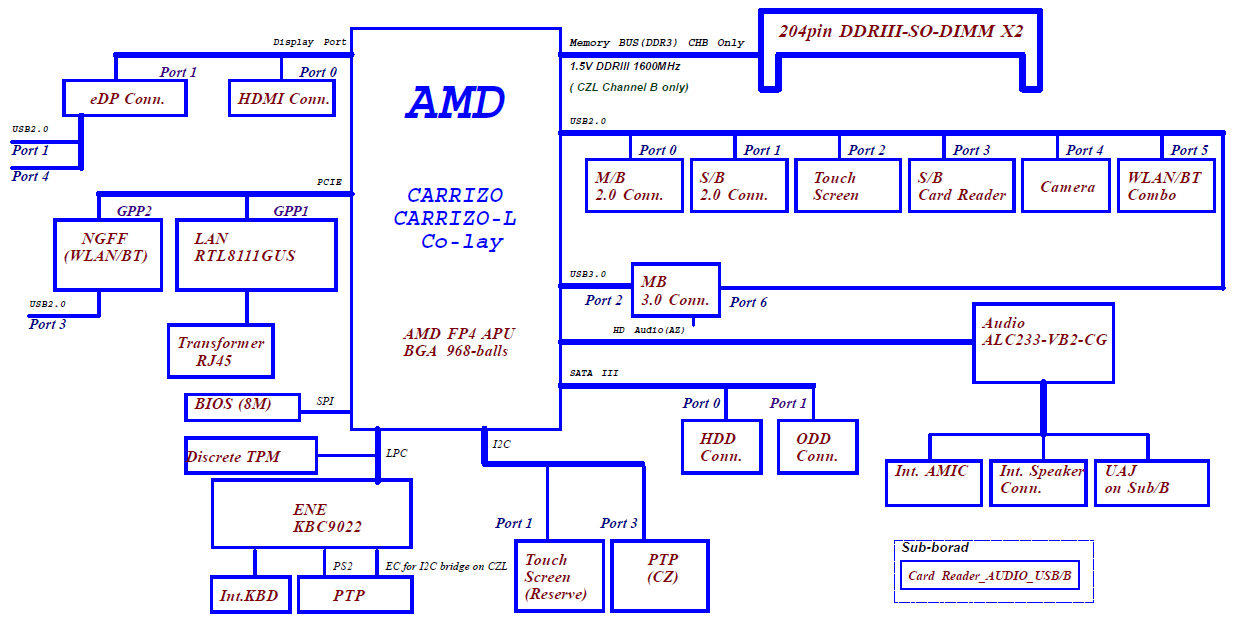

Click on picture to enlarge
