Acer TravelMate P645-SG, motherboard Schematic diagram
|
|

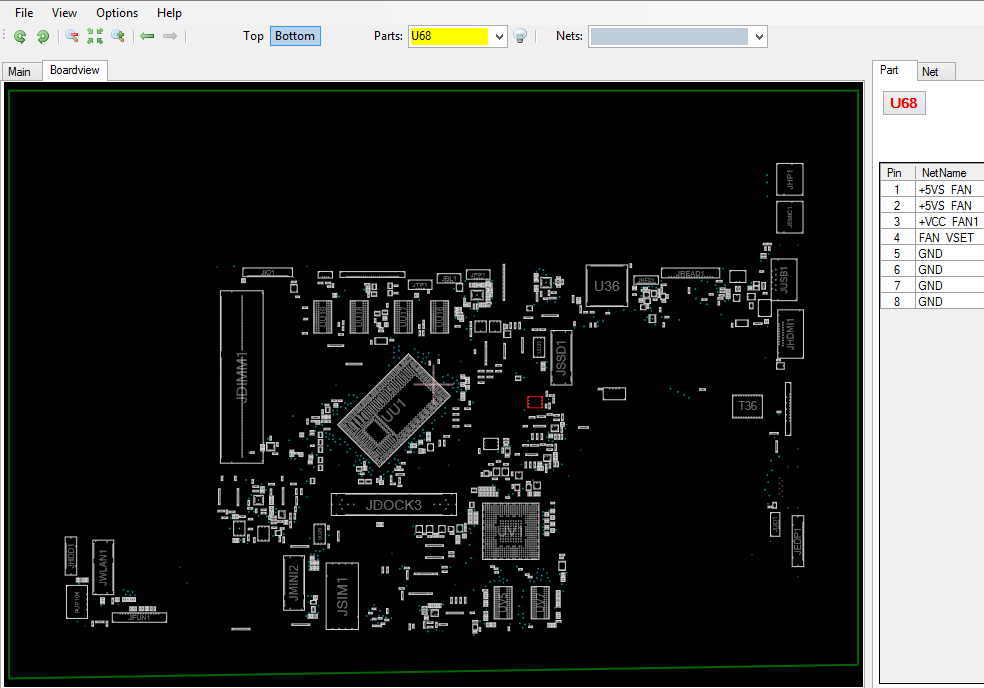

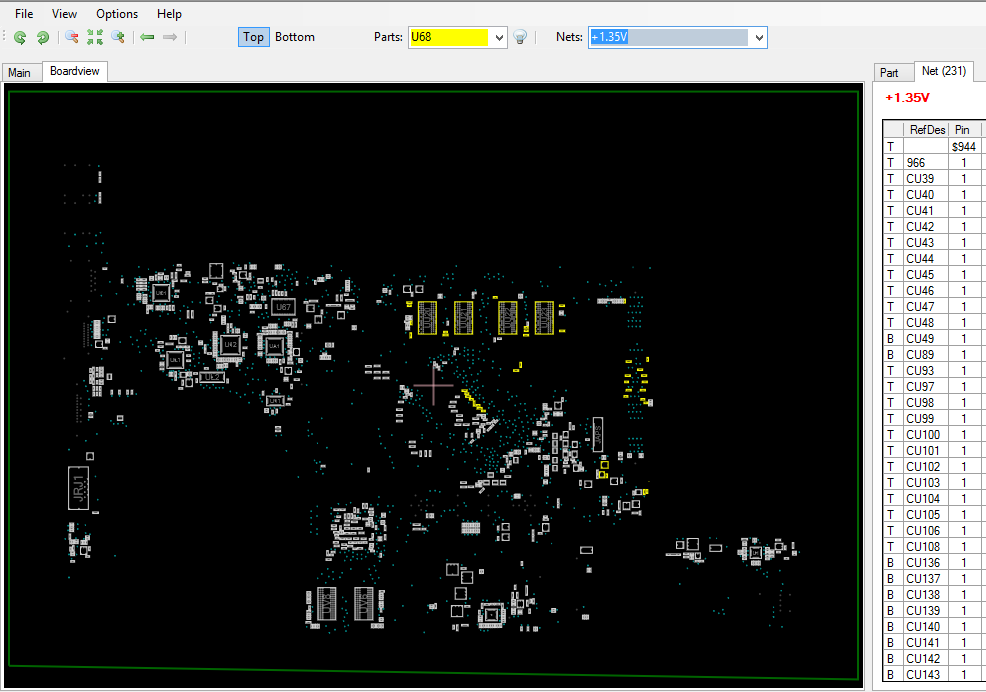

Price: US $15.00 Also included: — BoardView file for motherboard and BoardView software — Schematic diagram for Function Board (V4DA2 LS-A131P) — Schematic diagram and BoardView file for Transfer Board (A4DBH LS-B732P) — Schematic diagram and BoardView file for TouchPad Board (V4DA2 LS-A133P) — Schematic diagram and BoardView file for FingerPrint Board (A4DBH LS-B734P) — Power Block Diagram — Power Sequence Block diagram — Power Sequence Timing diagram Major components: CPU: Intel Broadwell ULT + DDR3 GPU: UMA or DIS (N15S-GT + GDDR3) EC: ENE KB9022 File type : PDF Language : English |
|---|

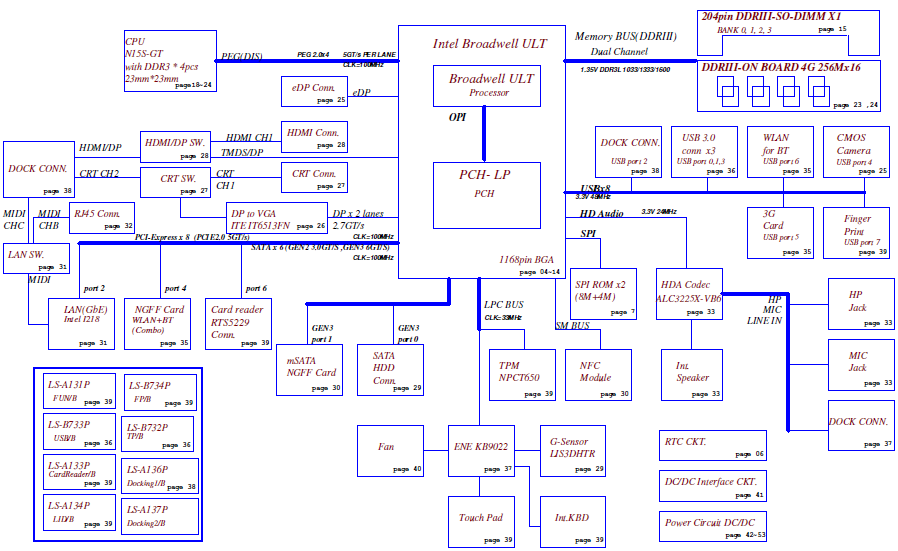

Click on picture to enlarge
