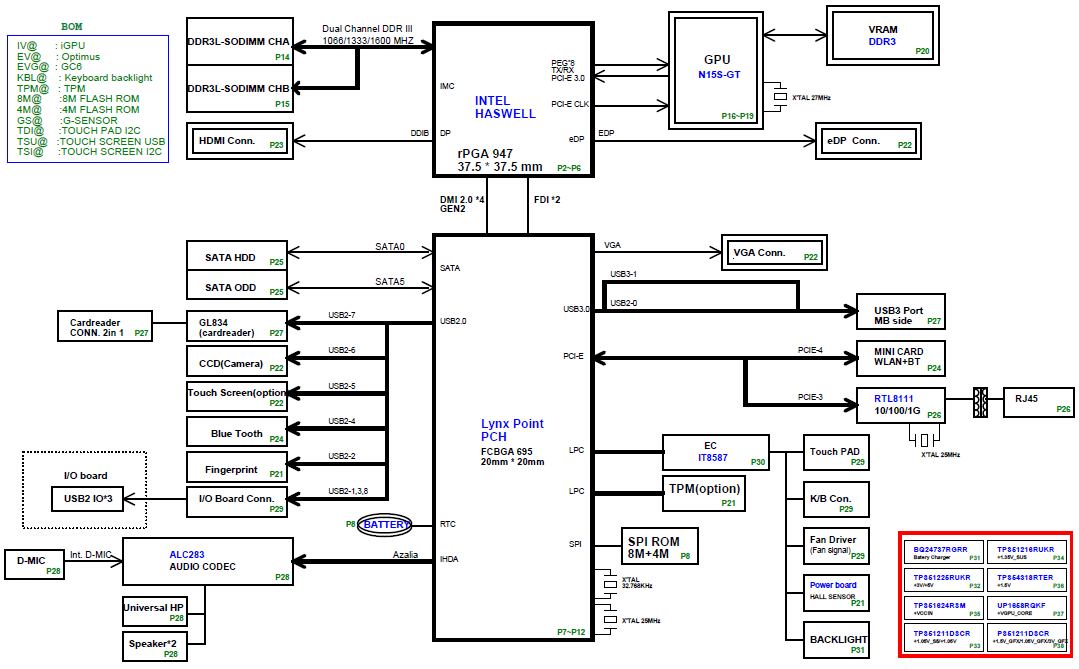

Acer TravelMate P246M-MG, motherboard Schematic diagram

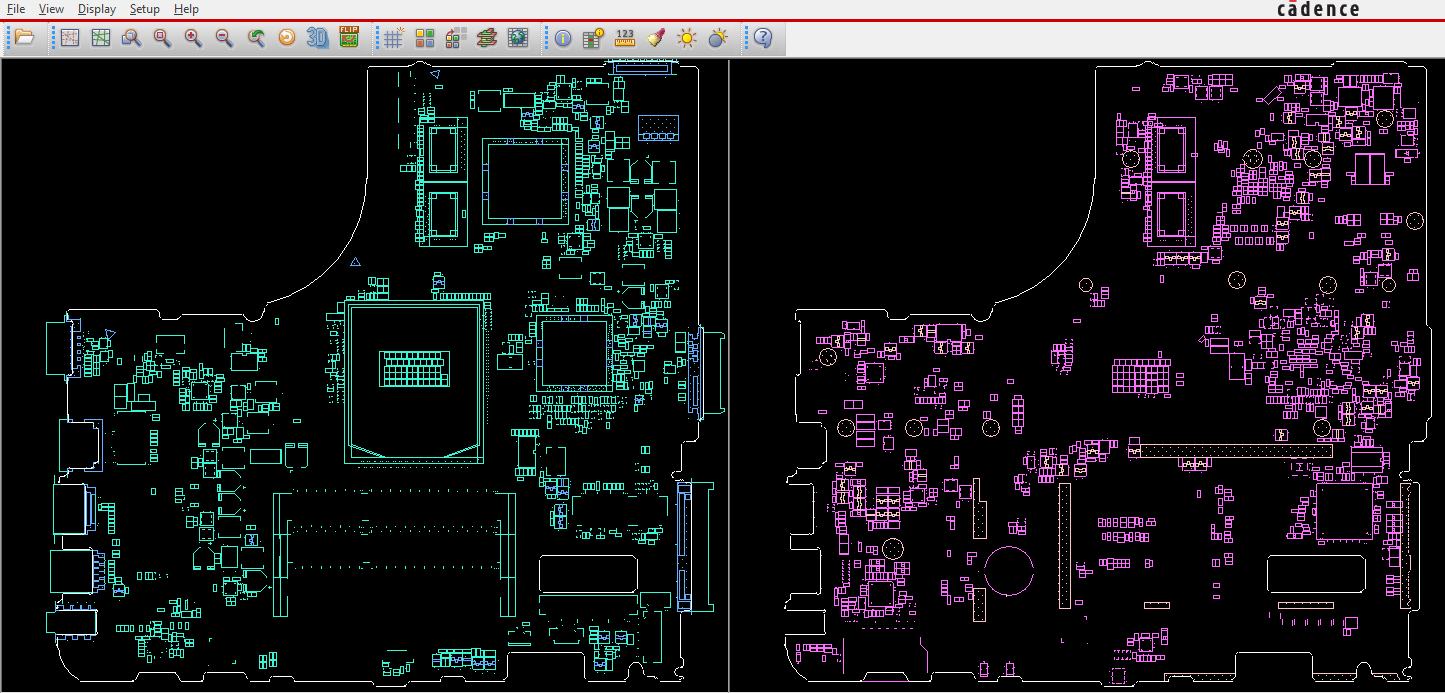

Click on picture to enlarge |
Also included: — BoardView file and BoardView software for MB — Additional schematic diagrams for Touch Pad and USB Board — Power Control Diagram — Power Sequence Block diagram — VGA power up sequence and reset diagram — Thermal Follow Chart — SMBus Map Major components: Intel Haswell CPU / Lynx Point PCH with DDR3L GPU: DIS (N15S-GT) + DDR3 EC : ITE8587 File type : PDF Language : English |
---|
