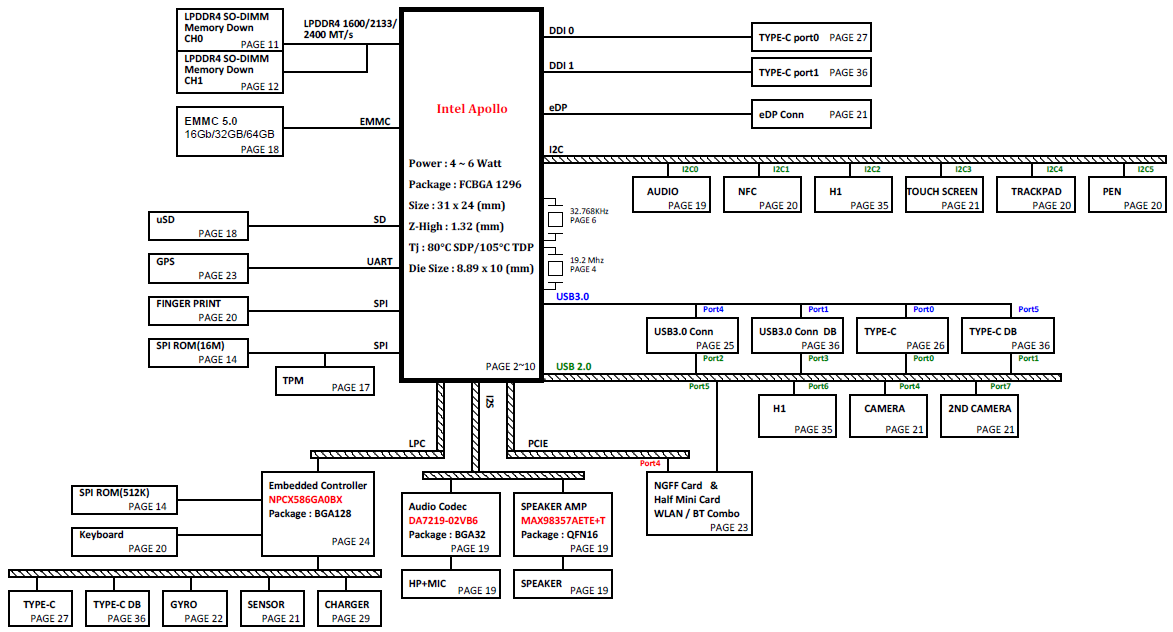

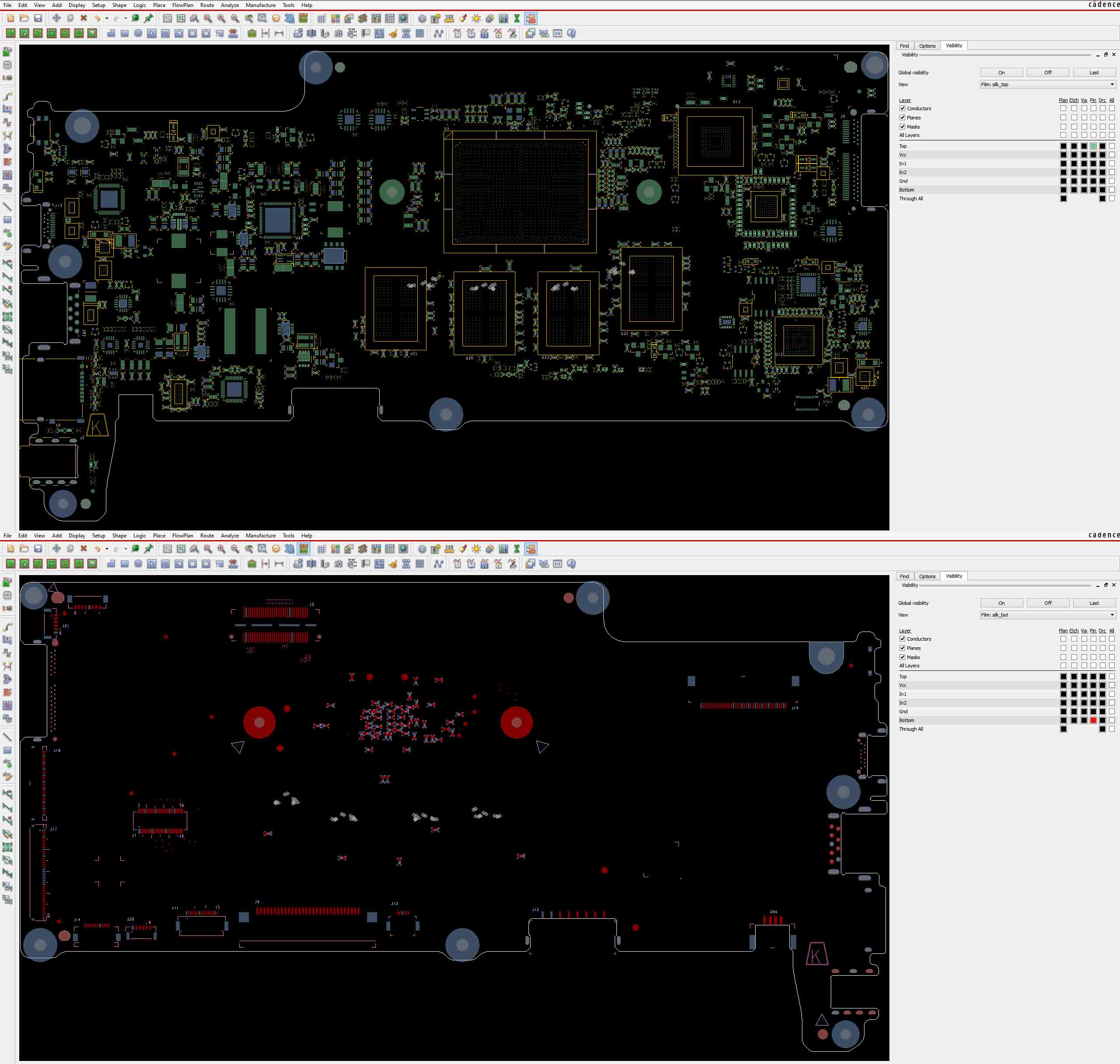

Acer Chromebook Spin 11 R751T, motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Major components:

CPU: Intel ApolloLake + LPDDR4
GPU: UMA
EC: NPCX586GA0BX

File type : PDF
Language : English
Updated: 30-06-2020
